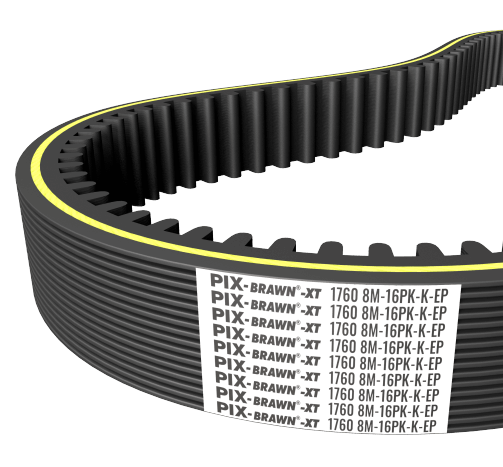

PIX-Brawn®-XT
Aramid-corded Poly+Timing Belts for Flour Mill Application

PIX-Brawn®-XT (Hybrid, Timing + Poly-V) Belt are widely used in flour and rice mills, on machines used for grinding (milling) food grains. The grinding process involves a combination of various actions such as compression, shearing, crushing, cutting, friction and collision.

The grinding rollers are twinned and each is made to rotate in a direction counter to each other. This kind of reverse rotary direction of rollers is possible with the use of PIX-Brawn Belt, which offers positive engagement on the one side (synchronous Belt tooth profile) and non-synchronous frictional transmission on the other side (Poly-V Belt rib profile). The ribbed profile allows functional slippage under the roller’s jamming condition and absorbs the fluctuations in torque levels. This construction also facilitates multi-shaft power transmission.

Features:

  • Combines the advantages of Timing and Poly-V Belts.
  • Transverse teeth for positive engagement on one side and longitudinal ribs for non-synchronous frictional transmission on the other side.
  • Suitable for multi-shaft transmission with reversed rotary directions of pulleys.
  • Specially treated aramid cords for high tensile strength and adhesion.
  • Anti-static, oil and heat-resistant.
  • Noise-free transmission.
  • Operating temperature range -35°C to +130°C.

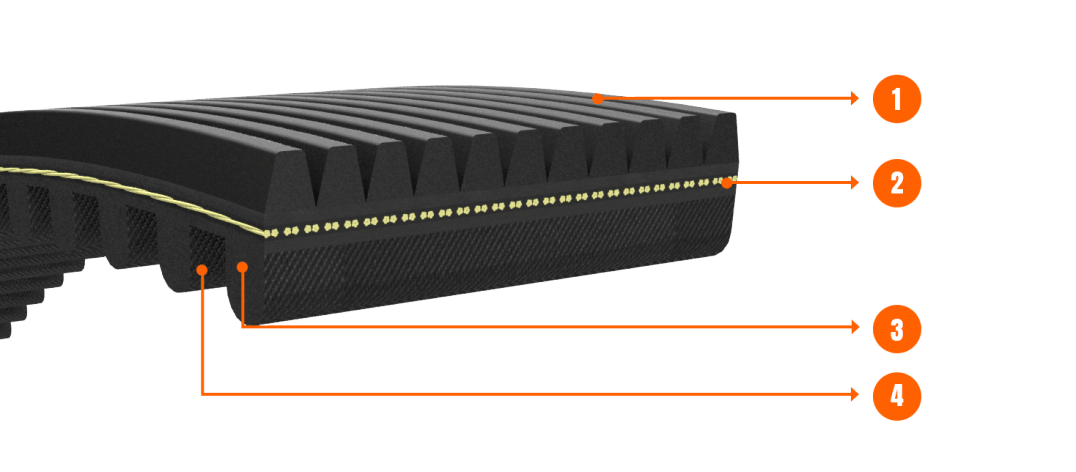

Constructional Details:

1) Machined ribbed driving surface for maximum area of contact and reduced face pressure.
2) Special aramid cord for high tensile strength, excellent flex life and high resistance to elongation.
3) Specially designed rubber compound for high frictional grip.
4) Specially woven fabric on the sprocket side of the synchronous profile, resistant to heat and abrasion, protecting the teeth from getting damaged.

In general, these Belts are characterized with physical attributes such as high-tensile strength, non-extensibility, high power transmission, high wear resistance and reverse-bend flexibility.

PIX Brawn Belt are expertly produced using technology and material of the highest standard to tackle the most challenging drive requirements. The unmatched reliability of these Belts makes PIX one of the most trusted brands in the Flour Mill segment.

If you would require additional information, please write to us at info@pixtans.com
